RETAINING WALL RESTORATION PROCESS

D I Y: "CRANK-UP"
your 'Leaning' Concrete
Retaining Wall
with a 12" CRESCENT & a
rental DITCH-WITCH trencher.

 Click Here for the Table of Contents of the instruction package that is being offered in the
'TRENCH, TORQUE AND TIE' RETAINING WALL RESTORATION PROCESS
for the complete restoration process from 'Stake-Out' to 'Job Completion.'

It's quick, cheap 'n easy with this Civil Engineer designed, wickedly powerful,
750 to 1 mechanical advantage,
startling new process.

 This low cost method to pull the wall up-right and lock it into position is not just a temporary
"band-aid" fix, but the best, complete, and "permanent repair" solution to your problem.

D.I.Y. Wall-Fix presents a method to permanently repair,
restore, and stabilize your failing concrete retaining wall.

Special offer!  If you are one of the first 10 customers to complete the procedure, you may be able to trade pictures of your successful operation for a complete refund of the purchase price.  We want to have a variety of "Before and After" pictures to illustrate the process.  Please let us know if you'd like to help us after we have helped you.

Gallery of Failed Retaining Walls

(click for larger views)

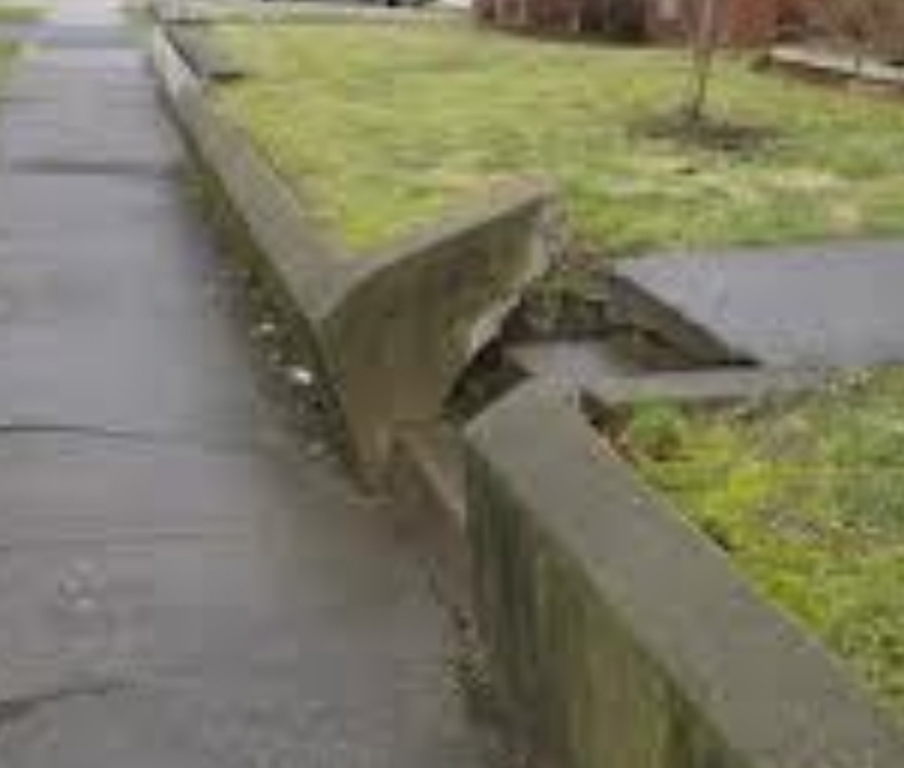

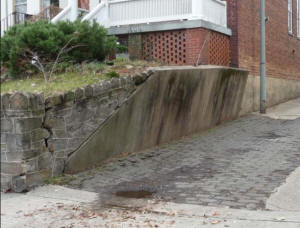

Potential Fix 1

This type of falling wall is perfect for our fix-up method because it is strong, but lacking adequate horizontal support, however the broken block section is not salvageable.

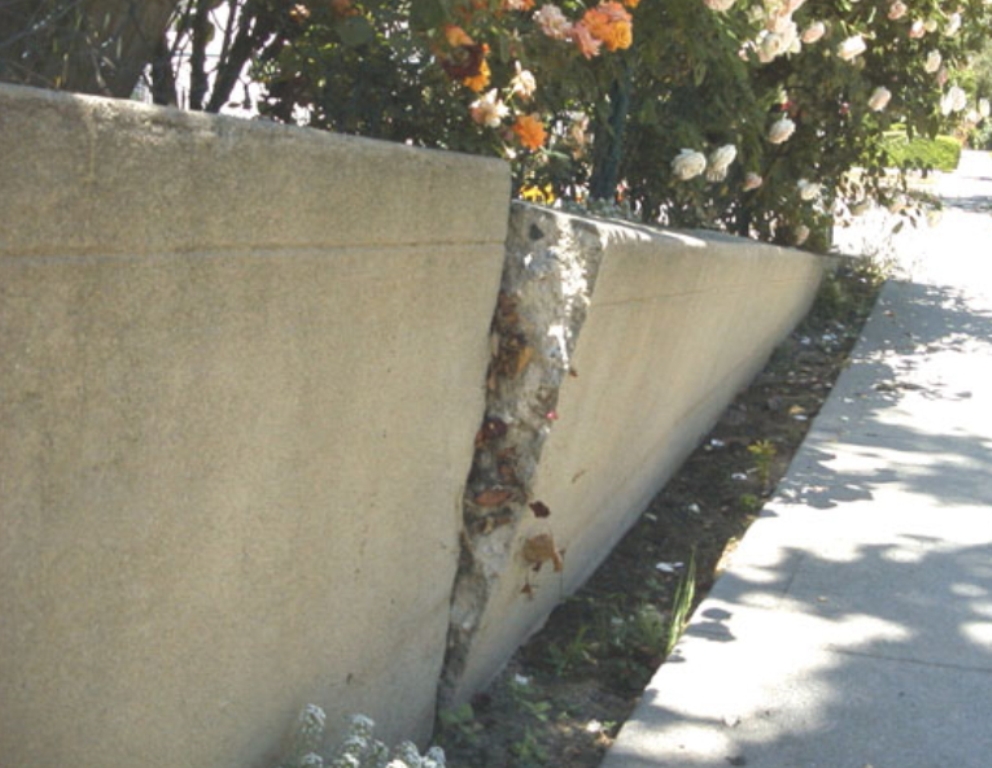

Potential Fix 2

This type of falling wall will need some crack-patching after our permanent repair because of the missing material.

Potential Fix 3

The far wall can be restored, the near wall could be up-righted and both repairs would be permanent.

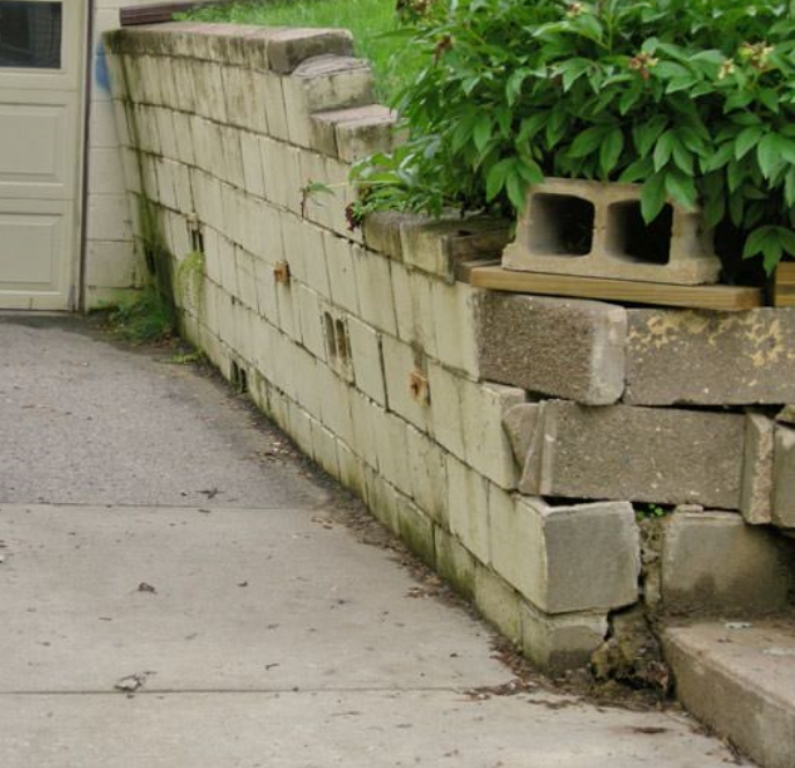

Unfit for T.T.T Process 1

Our T.T.T process cannot fix this type of wall because it lacks cohesion and is of unit masonry construction.



D.I.Y. REPAIRING YOUR TILTING CONCRETE RETAINING WALL

PERMANENT UP-RIGHTING of your failing concrete retaining wall, made FAST, CHEAP-N-EASY with the new D.I.Y. 'TRENCH, TORQUE, AND TIE' CIVIL ENGINEER-DESIGNED REPAIR METHOD.  A forty ft. long, five ft. high reinforced concrete retaining wall demolition and replacement cost would approach $10,000.  Yet, this permanent and  innovative repair method is but a $600 D.I.Y. project.  And the total "how to do it" fee to the homeowner (including individual consultation) is only $90!

This novel process uses a one-day rental of a ditching-trencher and a roto-hammer concrete drill to minimize  the 'grunt' work, and can be performed by one person.  Included in the instructive  'Action Packet' are lists of all job-required Materials, Supplies, Rental tools, Hand tools, Steel hardware and supply sources.  Four engineering drawings define and detail each phase of the job from layout to final clean-up.

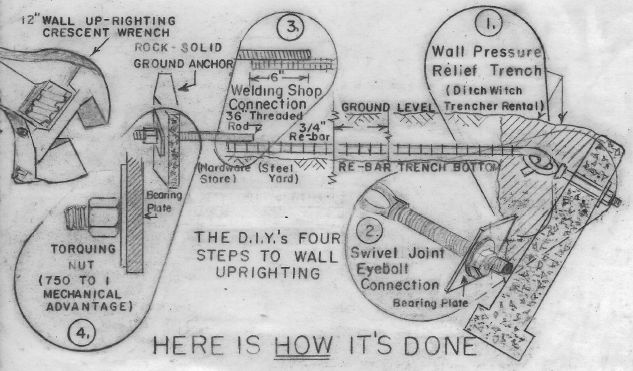

The Civil Engineer Designed 'Action Packet'  includes step-by-step instructions guiding the D.I.Y. homeowner though the four phases of the entire project.  These phases are:

  1. Worker Safety-strut and Temporary Bracing.

  2. Tension-rod Trenching Lay-out and Staking.

  3. Poured-in-place Field Anchors and Poured Concrete Field Splices.

  4. Torque process to Up-right the Tilting wall  (Without cracking).

But the D.I.Y. is not left without expert help and advice on any site-specific questions or complex job problems. Included in 'Trench, Torque, and Tie'  wall repair method's $90 fee is immediate and free technical advice and consultation service by both E-mail and telephone.  We have ourselves done this 'hands-on' concrete wall up-righting repair work in the field.  So, we do know the practical answers to your on-site questions and problems.

Here are some pictures of the D.I.Y. Retaining Wall Restoration process (click for larger views):

Retaining Wall Restoration Process 1

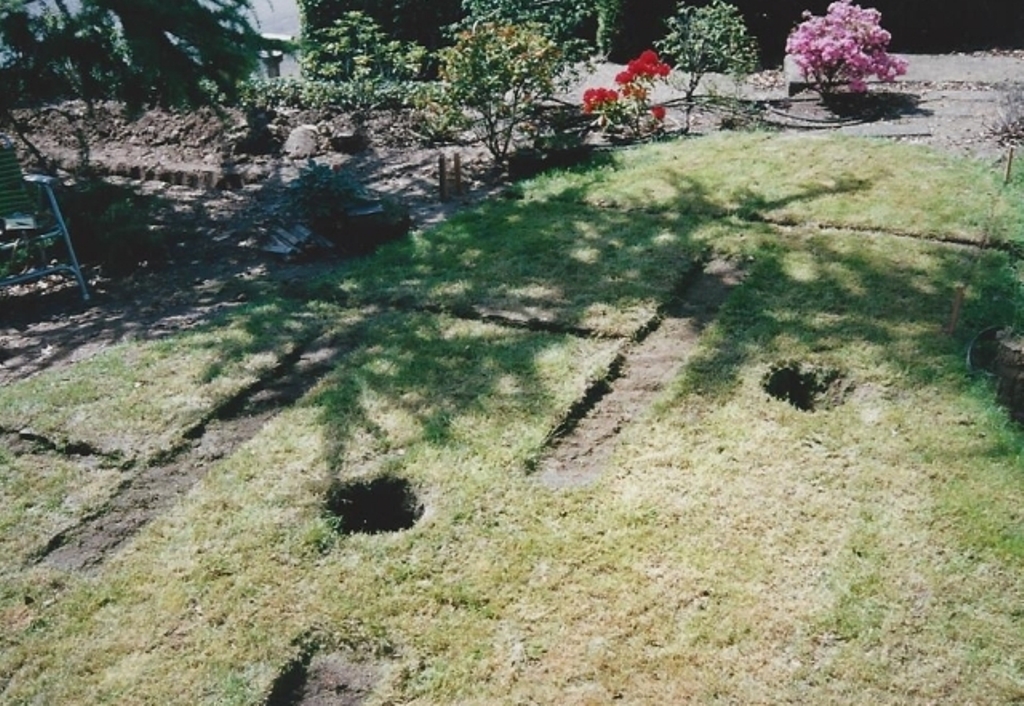

Daylighting holes for water and sewer location. Rolled up lawn strips saved, and then replaced for minimal trenching damage to lawn.

Retaining Wall Restoration Process 2

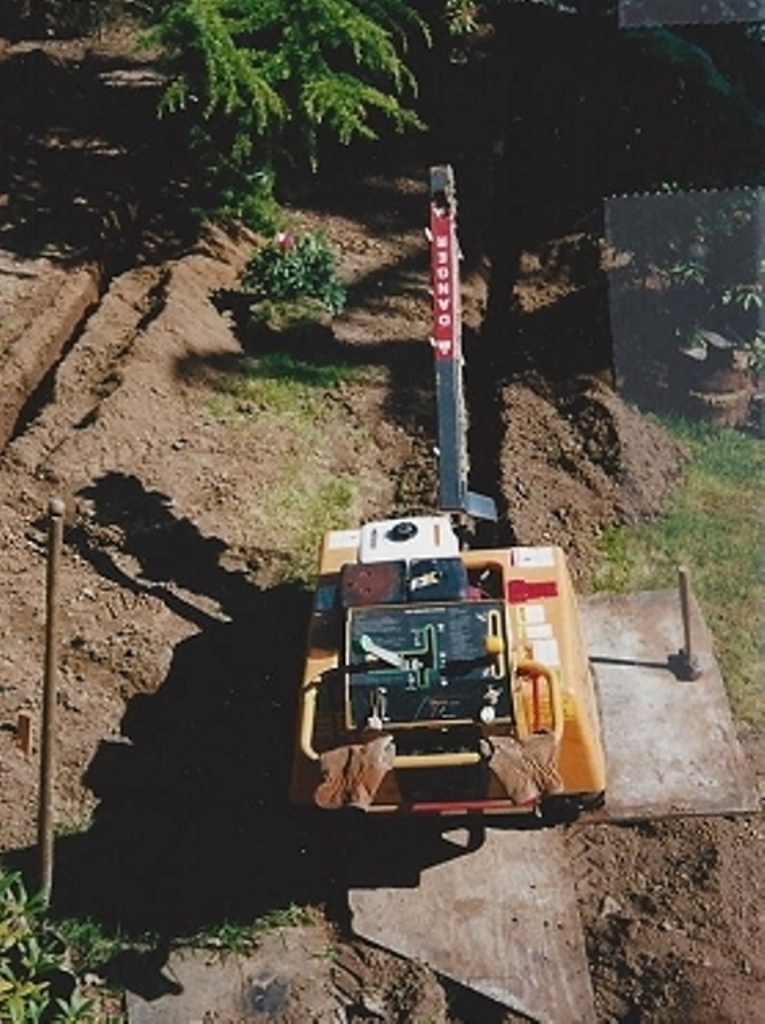

Rented trencher for retaining wall restoration process preparation.

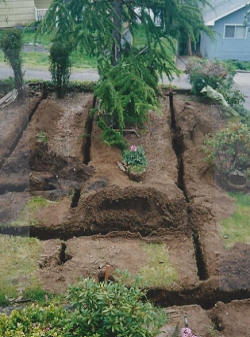

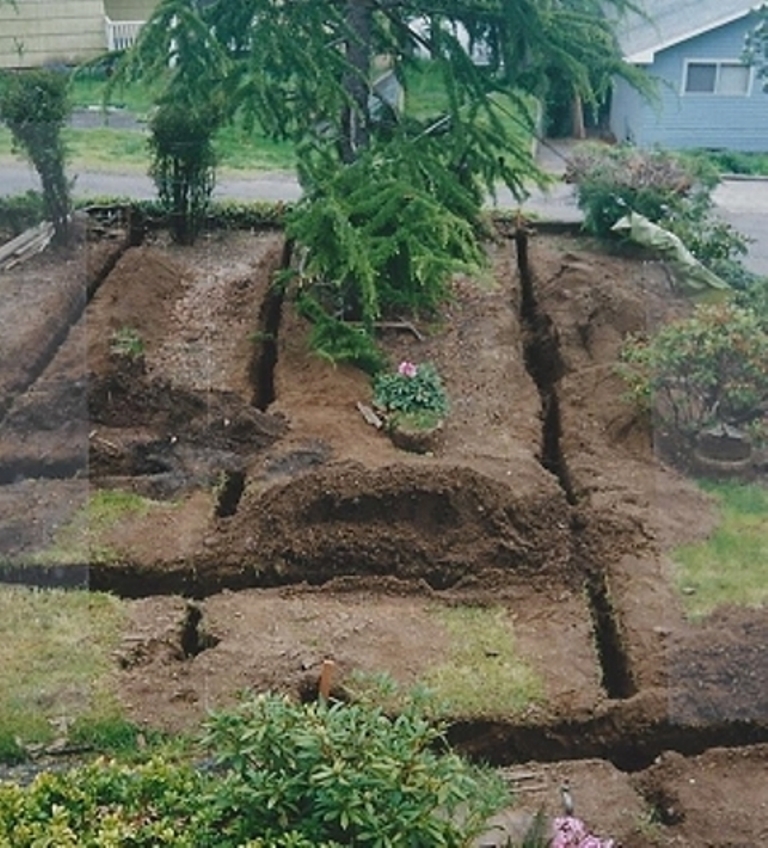

Retaining Wall Restoration Process 3

Transverse and perpendicular trenches for tension members and anchor assemblies for retaining wall restoration process.

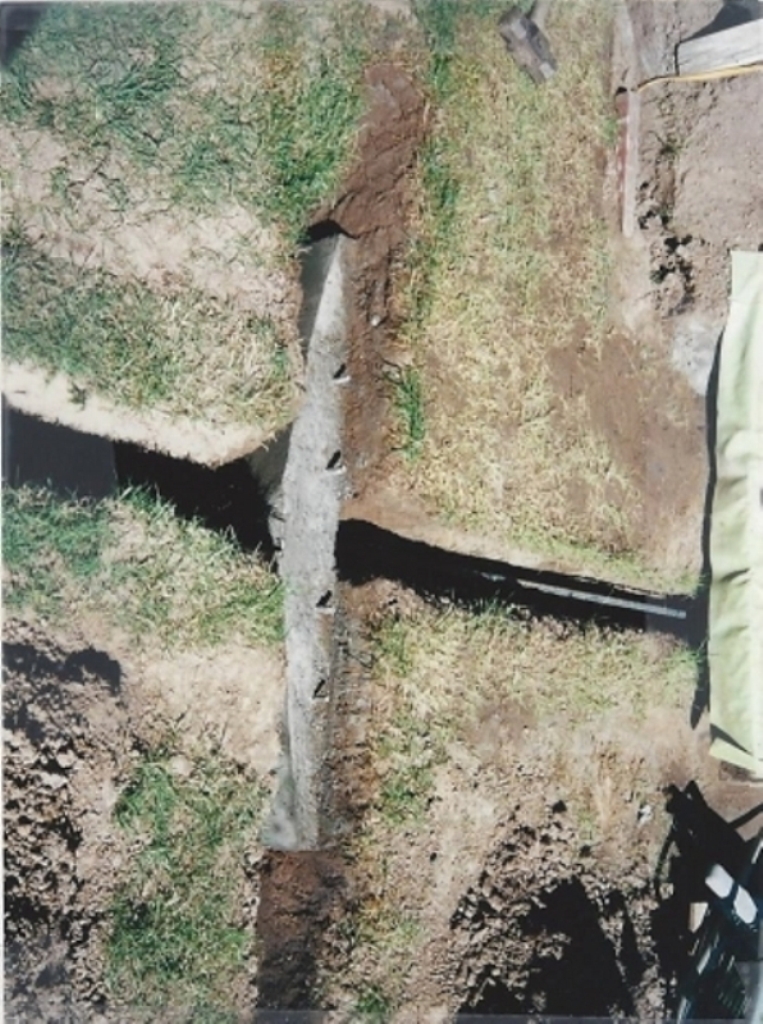

Retaining Wall Restoration Process 4

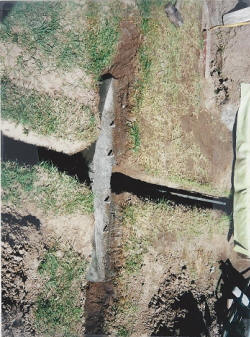

Poured-in-place field anchor for retaining wall restoration process.

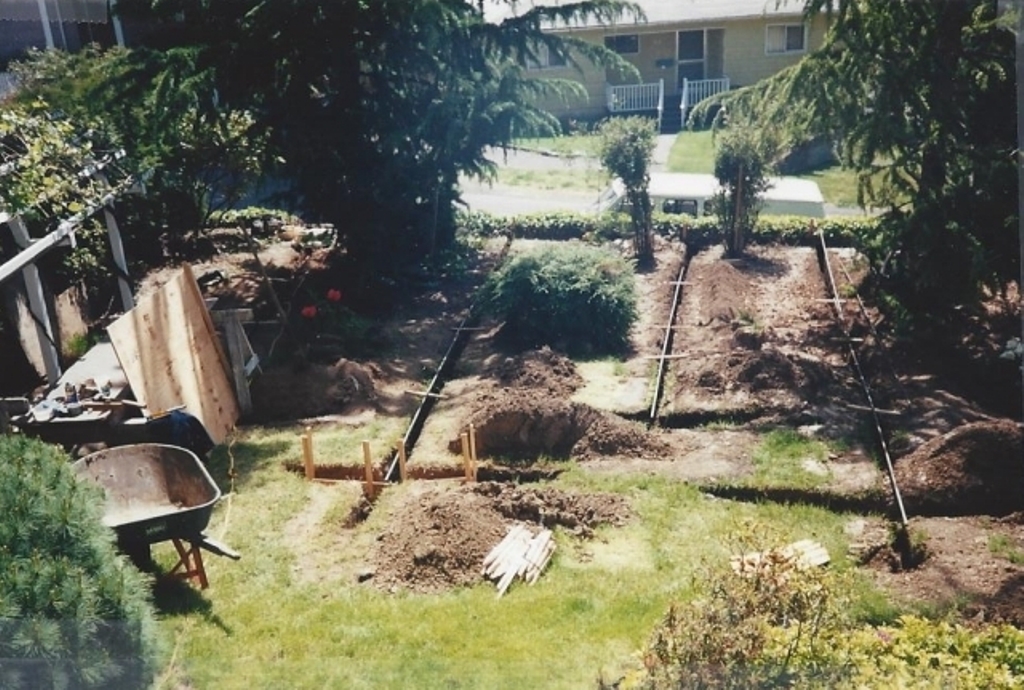

Retaining Wall Restoration Process 5

All components in place for final uprighting process for retaining wall restoration.

How can I be certain that this innovative new process will successfully solve my tilting wall problem?
. . . and what do I get for my money?

We two engineers have compiled, over a 10 year period, an extensive 40 page 'ACTION PACKET' of instructive narrative in the form of easy-to-follow step-by-step directions. Our disclosure to you now of the complete 'TABLE OF CONTENTS' is the best and quickest way to illustrate 'what you will get' for your $65 payment fee. Follow the link to the 'Repair Process to view TABLE OF CONTENTS listing the 61 components comprising the 40 page ACTION PACKET. Read the Table of Contents carefully. You're in for a surprise!



Here's how to solve your Failing Retaining Wall Problem!

You can select just the instructions ($65) or instructions with consultation with the inventor of the process ($90):

Purchase the Instructions with/without Consultation:

Purchase


If you are in doubt about your retaining wall's ability to be repaired with this process, send us some pictures and we'll respond with our assessment.  Send to: Support@DIYwallFix.com

Consultation limitations:

The pre-sales free consultation to determine applicability of the 'Trench, Torque, and Tie' process to your specific tilting retaining wall requires pictures of your failing concrete retaining wall, along with a description of the condition and size (height and length) of your wall.  Send an email with the pictures and text to Support@DIYwallFix.com .

If you would like more information on the details of the "Instructions+Consultation" package, please send an email with your questions to: Support@DIYwallFix.com

B.T. Van Wormer  (Civil Engr. Ret.)

C.B. Van Wormer (P. E. Registered)
